It is with great pleasure I announce the release of Boxcutter 713. This version brings a new mode to the table and a slew of new improvements.
Shoutout to the following,
AR – even away he’s a part of the team.
Feral / Tom – Ads for 713 Saw this tweet and sent him a message.
First things first make sure Blender 2.8 is up to date.

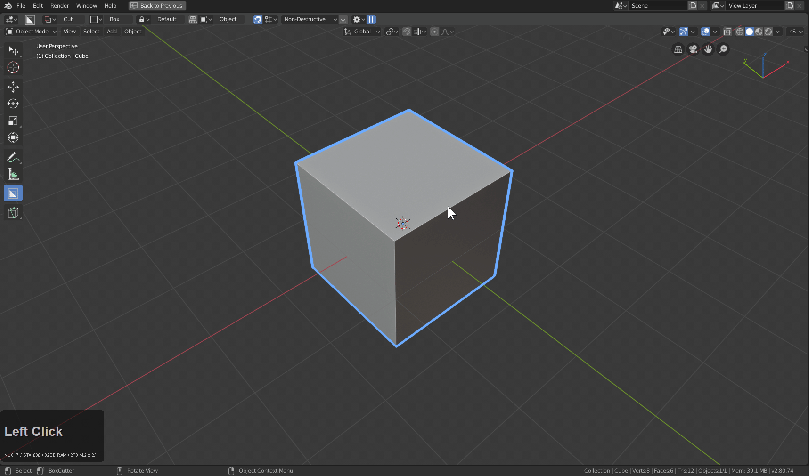

Boxcutter can be started with clicking activate Boxcutter.
There was also some cleanup to make it more presentable and remove duplicate options.
In addition the help is also here so it is more accessible than before.
The topbar now has an option for a slimmer version. This can be more useful for mice users versus pens.
Extraction has been added to Boxcutter however at this time it only takes boolean cut areas. This means if the area does not have a live boolean it will not be taken.

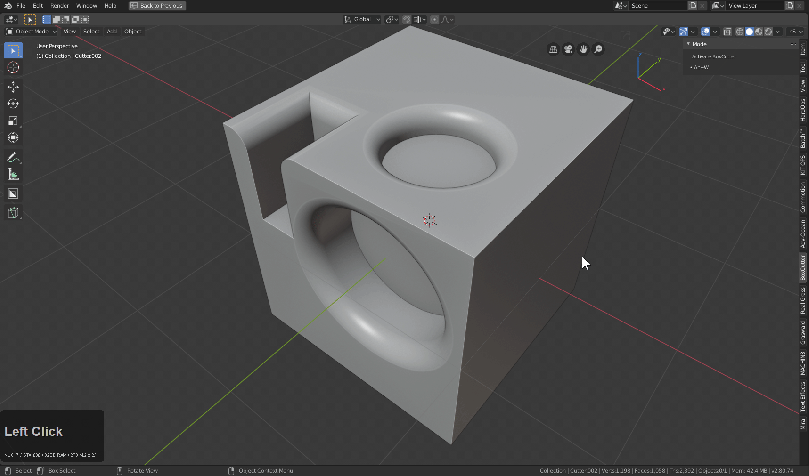

Here I cut a few circles in using dots to center subsequent circles in the face center.
Extractor can be switched to with Y during draw.
After an extraction the custom shape is then the extracted mesh. This allows for rapid use after extraction.
flip shape vertical – shift + F
rotate shape – R or ~ during draw
NOTE: Ngon cyclic does not support bevel yet. A special system will have to be made expanding on it.
Pressing C during Ngons toggles cyclic which can be used for creating imprint lines.
To best explain how to use cyclic.

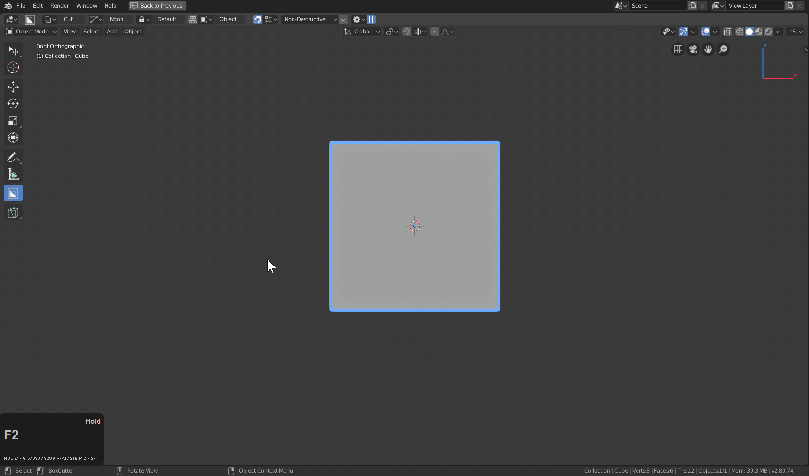

When in (C)cyclic mode you can double click the last point which will make the line darker. From here lazercut is active and the user can press T to add thickness to the shape.We hope to expand on its uses in the future.
Classic Blue Box
If you draw the blue box in 2d which means not starting on the mesh you are able to use classic blue box from 79′. Classic blue box will cut into a surface and never create an interior face. The 3d version of blue box is still showing occasional issues that will be fixed in a future release.
Blue box also has received an additional capability. Since knife project works with any type of edgework, with custom shape Blue box can cut custom geometry into other forms!
I have long wanted to cut grids into forms for deformation and now with Boxcutter it is easier than ever.
When users complain about array we take it to heart. Too long has users pressed V and lost their arrays.
Press R during array to reset position and also to rotate the axis.
We have a more permanent solution planned but it will take a moment to execute.
Array getting out of hand? Just press R during array to get it back under control.
Multidirectional multi grid array coming soon.
Mirror has also received an improvement.
To mirror on X press 1 during draw. To flip the mirror press 1 again. To remove mirror press 1 again.
Bevel To Chamfer
If you bring the bevel in to 0 it will be changed to a chamfer and so forth.
This one is odd but kinda fun.If you enable remesh under sort boxcutter will place bevels below. Now you can work in all quads… kinda. Multiple restrictions apply!
HOPS Back Bevel for BC
Usually BC has something HOPS wants but this time HardOPS is prepared for Boxcutter.
As of (2.8) HOps 0098_1 Californium_33 if you select a face and use Bevel in object mode (ctrl + click) it will flip the normal allowing for a nice back bevel.
In the future this will be inherent in Boxcutter for use on the fly.
There were also a few additional quality of life improvements and bugfixes not worth mentioning but we still have a road ahead. We are grateful to all who report bugs and post art to keep us motivated!
